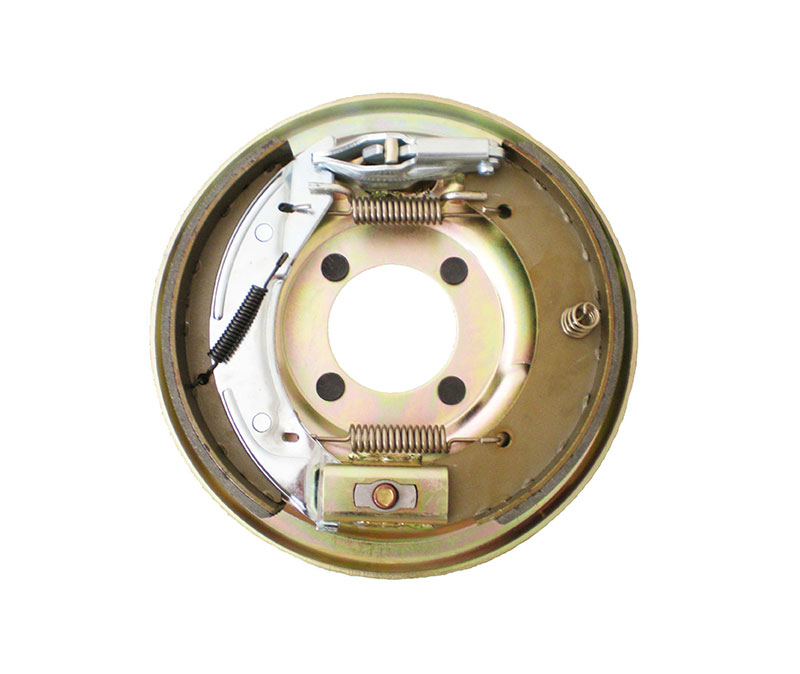

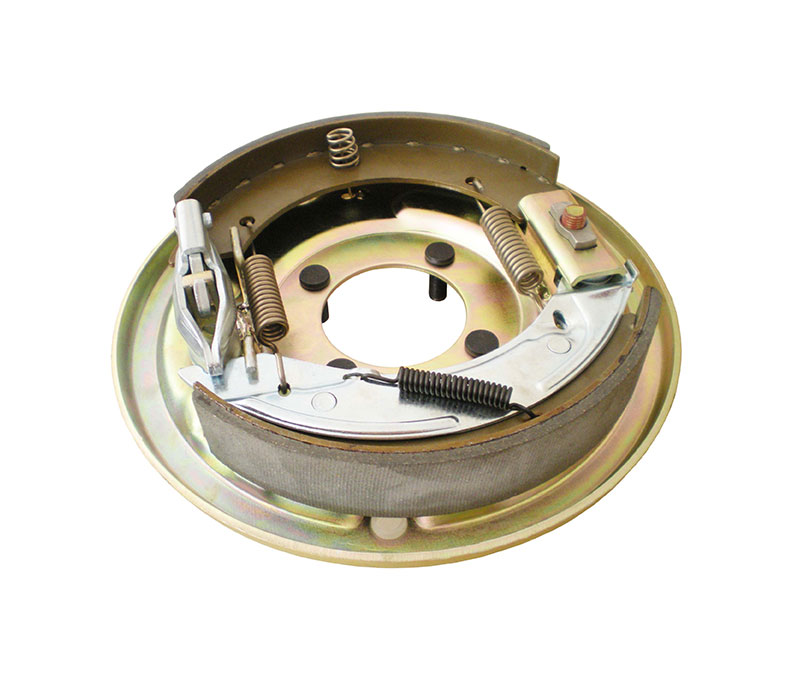

250 X 40 (10") Trailer Mechanical Brake Assembly

Trailer Brakes

10 inch Brake Drum

250 X 40 Brakes

1800 kg

Trailer Mechanical Brake

10” Trailer Brake Systems



Yingtu is a China trailer mechanical backing plate manufacturer, we produce range of trailer brakes and trailer axles, our 250 mm X 40 mm trailer brakes are pre-assembled with shoes, springs etc, two 250 x 40 brakes service one axle. Suitable for a 10" trailer brake drum.  Fit many 1800 kg axles for European Ifor Williams Trailers, Caravans, Horseboxes, boat trailers, etc.


l  10“ mechanical trailer brake systems have one fixed brake shoe and one auto reverse brake shoe.

l  Zinc-coated backing plates against rust, corrosion, etc.

l  Brake mounting bolts are included.

l  The 250 mm x 40 mm mechanical trailer brake exchange with Knott, and other standard brake assemblies.


Ø  Dimension: 250 mm x 40 mm

Ø  Axle Capability: 1800 kg Axle

Ø  Mounting Flange Bolt Pattern: 4 bolt

Ø  Brake Fit: Left Hand / Driver Side / LH, Right Hand / Passenger Side / RH

Product Composition

²  250 × 40 Brake Shoe Kit x 1

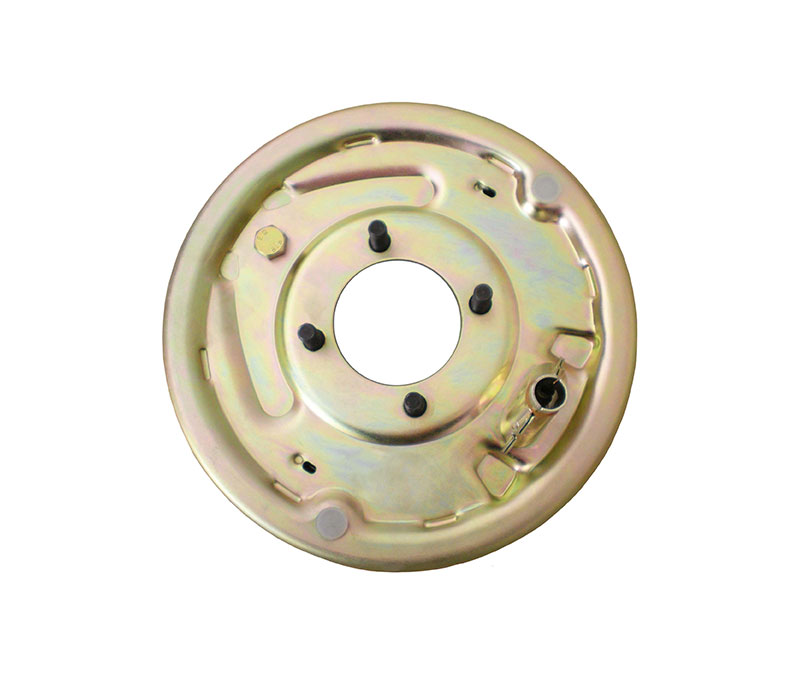

²  250×40 Back Plate x 1

²  Cable cover / Half Shell (one is welded on) x 2

²  Brake Cable Eyelet x 1

²  Expander x 1
