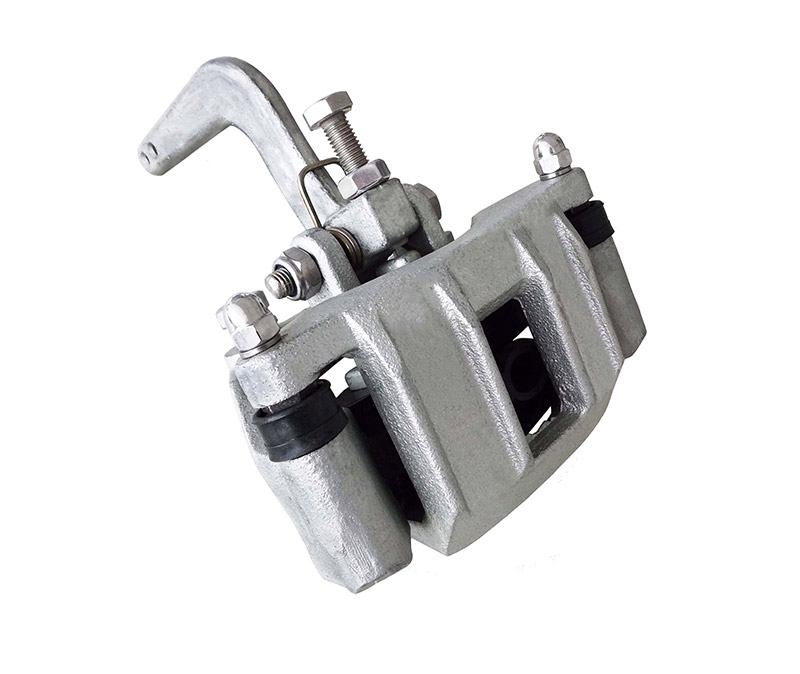

Galvanized Trailer Mechanical Disc Brake Caliper – Centre Pull

Cast Iron Brake Caliper

Heavy Duty

Marine Trailer Mechanical Disc Brake

1700 KG (15”/16” WHEEL)

Boat Trailer Brakes

2000 KG (13”/14” WHEEL)

Mechanical Disc Caliper

Marine Trailer Brake Caliper

Trailer Brake Pads

Centre Pull



The trailer mechanical disc brake calipers have two configurations, forwarder pull and centre pull. The forward pull is commonly used on beam/spring axle, and he centre pull is used on independent/torsion axle. The difference between these two calipers is the lever.

The mechanical centre pull brake is old version, it’s heavy duty trailer caliper. We are Chinese mechanical brake caliper exporter, there are DIY trailer mechanical disc brake kits that can be provided. Every kit contains 2 pcs of trailer brake discs, 2 pcs of brake calipers with pads and bearings etc. This caliper is made of cast iron, stainless steel is available. Other specifications are same as forward pull caliper.

Features

l  Requirement of disc hubs and rotors: Thicknesses from 12 mm to 15 mm.

l  Galvanized coated and stainless steel accessories can prevent the corrosion of seawater.

l  Mounting bolts and pads are included. Quick and easy installation.

l  Mechanical Disc Brakes are more affordable than hydraulic disc brakes.

l  This mechanical disc brake calipers exchange with AL-KO centre pull calipers.

Specifications

Ø  Axle Capability: 1700 kg (15”/16” wheel), 2000 kg (13”/14” wheel)

Ø  Mounting Bolts:  12 mm

Ø  Bolt Spacings: 88.9 mm (3.5”)

Ø  Max cable pull input (kg) per brake: 300 kg

Product Composition

²  Non-asbestos semi-metal brake pads x 2

²  Galvanized Cast Iron Brake Caliper Body x 1

²  Slide Pin Kit x 1

²  Slide Dust Boot x 2

²  Centre Pull Lever x 1
