Stainless Steel Trailer Hydraulic Disc Brake Caliper

Boat Trailer Hydraulic Disc Brake

Hydraulic Disc Brake Caliper

Hydraulic Disc Brakes

1400 KG (15”/16” WHEEL)

Trailer Calipers

1600 KG (13”/14” WHEEL)

Hydraulic Brake Caliper

Stainless Steel Brake Caliper

Trailer Brakes Caliper

Ceramic Brake Pads

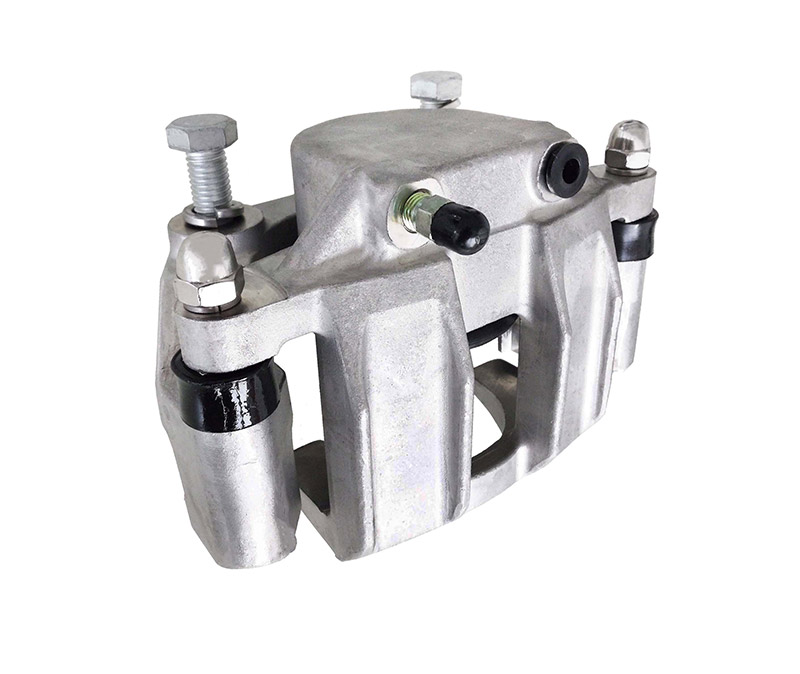

The trailer brake caliper is stainless steel material, it has a phenolic piston and two pieces of ceramic brake pads. Upgraded trailer calipers have high rust-protection, high corrosion resistance and excellent anti-wear performance.  The hydraulic trailer brake calipers suitable for boat trailers, box trailers and car trailers. This caliper will fit AL-KO trailer hydraulic disc brakes that use a 5 or 6 lug trailer disc rotor. Other specifications are same as the cast iron trailer hydraulic disc brake type.

Features

l  Used with IQ7 or hydraulic over ride couplings (the load weights exceeding 2000 kg).

l  Requirement of disc hubs and rotors: Thicknesses from 12 mm to 15 mm.

l  Stainless steel caliper body and pads backing plate can prevent the corrosion of seawater.

l  Mounting bolts, spring washers and pads are included. Quick and easy installation.

l  This hydraulic disc brake calipers exchange with AL-KO and Trojan calipers, but have different appearance.

Specifications

Ø  Axle Capability: 1400 kg (15”/16” wheel), 1600 kg (13”/14” wheel)

Ø  Mounting Bolts:  12mm H.T. x 45mm

Ø  Bolt Spacings: 88.9mm (3.5”)

Ø  Recommended operating pressure: 6.9 mpa (1000psi)

Product Composition

²  Non-asbestos semi-metal brake pads x 2

²  Galvanized Cast Iron Brake Caliper Body x 1

²  Bleed Screw x 1

²  Phenolic Resin Piston x 1

²  Piston Seal x 1

²  Piston Dust Boot x 1

²  Slide Pin Kit x 1

²  Slide Dust Boot x 2
