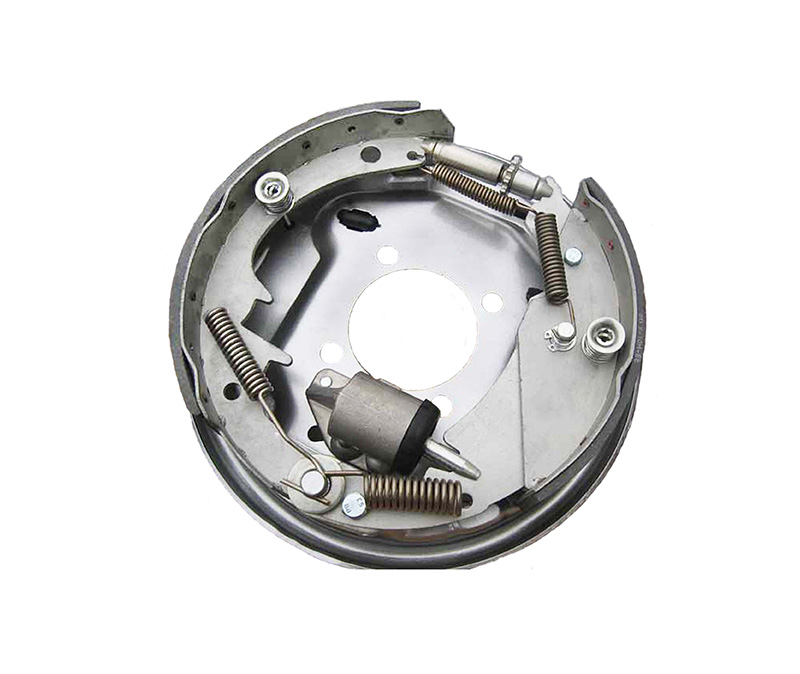

10" x 2 1/4" Trailer Hydraulic Free Backing Brake Assembly - Dacromet / Galvanized Coated

Hydraulic Drum Brakes

10 x 2 1/4 inch Drum

Trailer Backing Plates

3500 lb

Hydraulic Trailer Brake System

Free Backing

Trailer Brake Assembly

Galvanized Trailer Hydraulic Brake


The 10” x 2.25” hydraulic free backing brake has two coated, dacromet and galvanized, it’s 3500 lbs axle hydraulic brake uses 4 bolt mounting flanges. Because 10" free backing brake assembly lacks electrical parts, there are a pair of rivered brake shoes and stainless-steel springs, a trailer with hydraulic brake can safely be backed into water. So this 10" trailer brake perfect for boat trailers.


l  Using with a surge-type trailer brake actuator.

l  Dacromet / Galvanized coated delivers better corrosion protection than standard finish.

l  Periodic manual adjustment required.

l  Mounting bolts and hardware sold separately

l  This brake fits on 3.5k lb axles with hydraulic drum brakes, such as Dexter, Axis, Rockwell, Atwood etc.


Ø  Dimension: 10 inch x 2 1/4 inch

Ø  Axle Capability: 3500 lbs Axle (13”, 14”, 15” Wheel)

Ø  Mounting Flange Bolt Pattern: 4 bolt

Ø  Brake Fit: Left Hand / Driver Side / LH, Right Hand / Passenger Side / RH

Product Composition

²  10” x 2 1/4" Riveted Free Backing Brake Shoe Kit x 1

²  Dacromet / Galvanized Back Plate x 1

²  Single-Servo Aluminum Wheel Cylinder x 1

²  Stainless Steel Springs x 2
