10" x 2 1/4" Trailer Hydraulic Uni-Servo Brake Assembly - Dacromet / Galvanized Coated

Trailer Brake Drum Kit

10 x 2 1/4 inch Drum

Galvanized Trailer Brakes

3500 lbs,

10" Hydraulic Brakes


Boat Trailer Brakes

Dacromet Hydraulic Drum Brakes

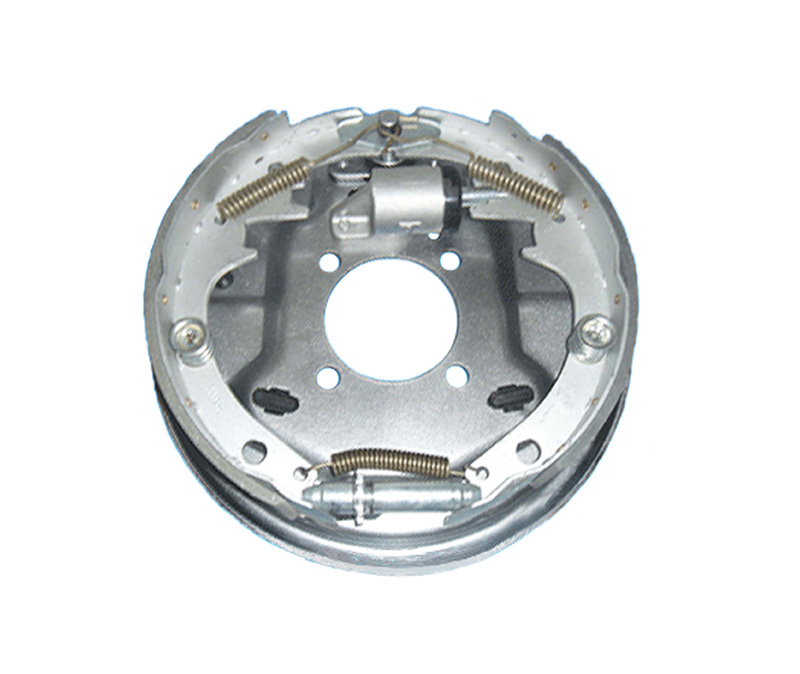

This 10" hydraulic uni-servo brake contains one set of riveted dacromet brake shoes, dacromet backing plate, stainless steel springs and an aluminum wheel cylinder. This 3.5k trailer brake assembly is built to the highest standards of the RV industry and will last a long time. Our 10 inch trailer brake has 4 holes with most major brands of axles, without modifying the axle or mounting flange. Hot dip galvanized is available.


l  Using with a surge-type trailer brake actuator.

l  Dacromet / Galvanized coated offers the best value of protection for salt water applications.

l  Fine-tooth brake adjustment gears allow for a more precise setting

l  Periodic manual adjustment required.

l  This brakes exchange with most quality hydraulic brakes, such as Dexter, Demco, Hayes, Titian, Atwood etc.


Ø  Dimension: 10 inch x 2 1/4 inch

Ø  Axle Capability: 3500 lbs Axle (13”, 14”, 15” Wheel)

Ø  Mounting Flange Bolt Pattern: 4 bolt

Ø  Brake Fit: Left Hand / Driver Side / LH, Right Hand / Passenger Side / RH

Product Composition

²  10” x 2 1/4" Riveted Uni-Servo Brake Shoe Kit x 1

²  Dacromet / Galvanized Back Plate x 1

²  Single-Servo Aluminum Wheel Cylinder x 1

²  Stainless Steel Springs x 2
