10" x 2 1/4" Trailer Hydraulic Free Backing Brake Assembly

Hydraulic Drum Brakes

10 x 2 1/4 inch Drum

10" Trailer Brake

3500 lbs

Marine Brake Assembly

Free Backing

Trailer Hydraulic Brakes

Hydraulic Backing Plates

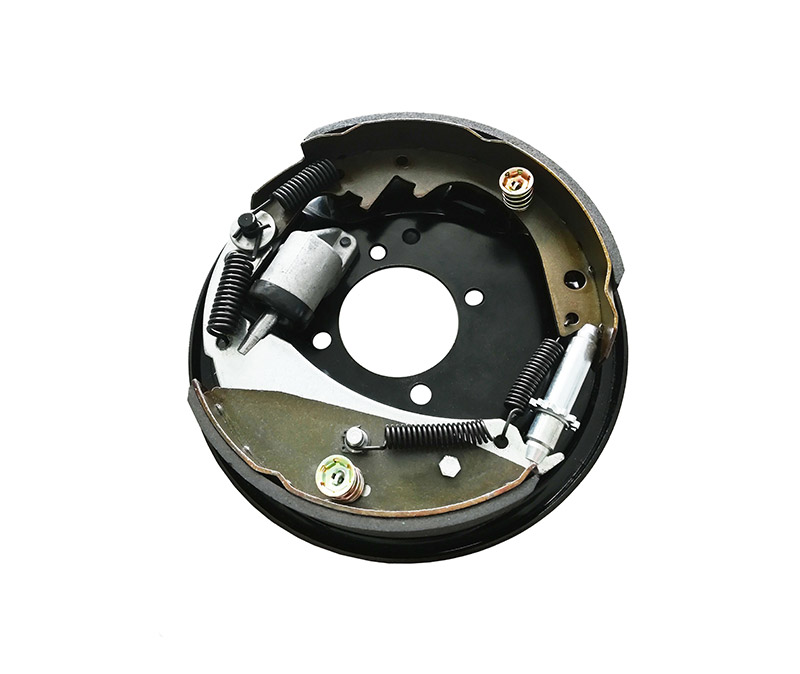

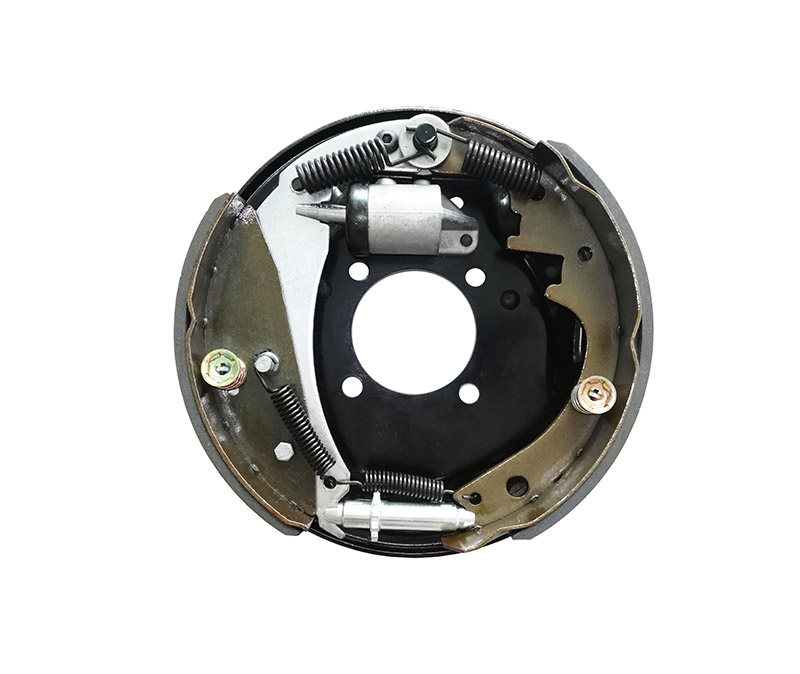

This 10“ x 2.25” hydraulic trailer brake assembly is free backing type, fits standard 4 bolt mounting flange. The brakes work with 10 inch trailer brake drums for 3500 lbs (3.5k) trailer axles. 10” hydraulic free backing brakes incorporates a “fall-away” shoe which diminishes shoe drag when backing up. 12” or 10” trailer brake is great for boat trailers, so the hydraulic trailer brakes wholesaler usually stocks lot of them.

Features

l  Hydraulic free-backing brakes use with a surge-type trailer brake actuator.

l  Free-backing design lets you reverse without trailer brakes being activated.

l  E-coated backing plates resist wear and corrosion.

l  Periodic manual adjustment required.

l  These hydraulic trailer brakes exchange with most axle brands including Dexter, AL-KO, Demco, and many others.

Specifications

Ø  Dimension: 10 inch x 2 1/4 inch

Ø  Axle Capability: 3500 lbs Axle (13", 14”, 15" Wheel)

Ø  Mounting Flange Bolt Pattern: 4 bolt

Ø  Brake Fit: Left Hand / Driver Side / LH, Right Hand / Passenger Side / RH

Product Composition

²  10” x 2 1/4" Bonded Free Backing Brake Shoe Kit x 1

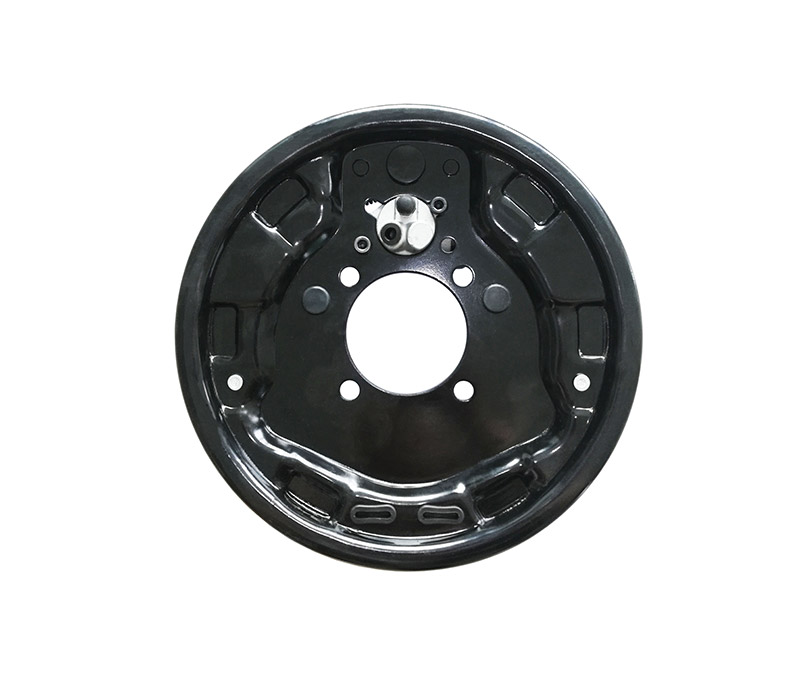

²  E-Coated Back Plate x 1

²  Single-Servo Wheel Cylinder x 1

²  Springs x 2

²  Adjuster X 1
