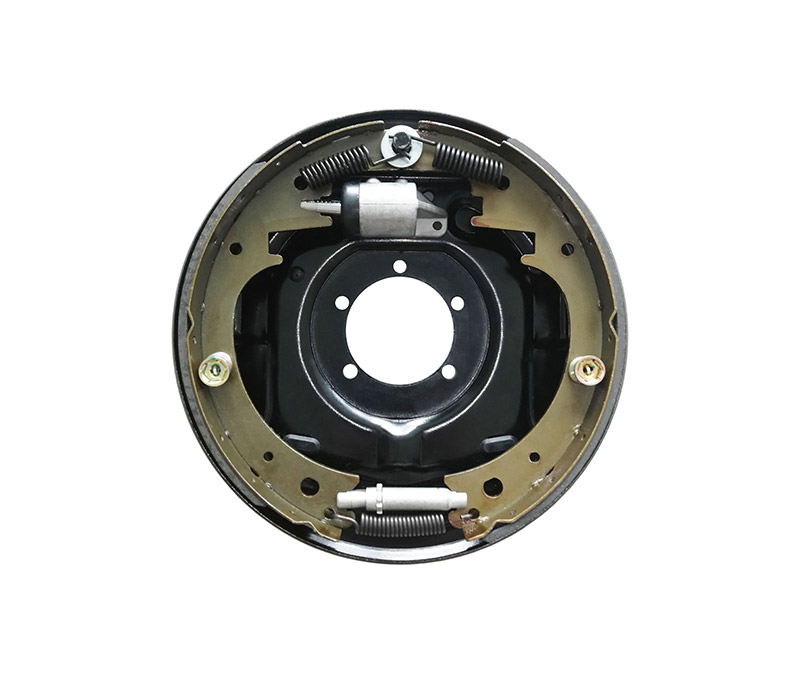

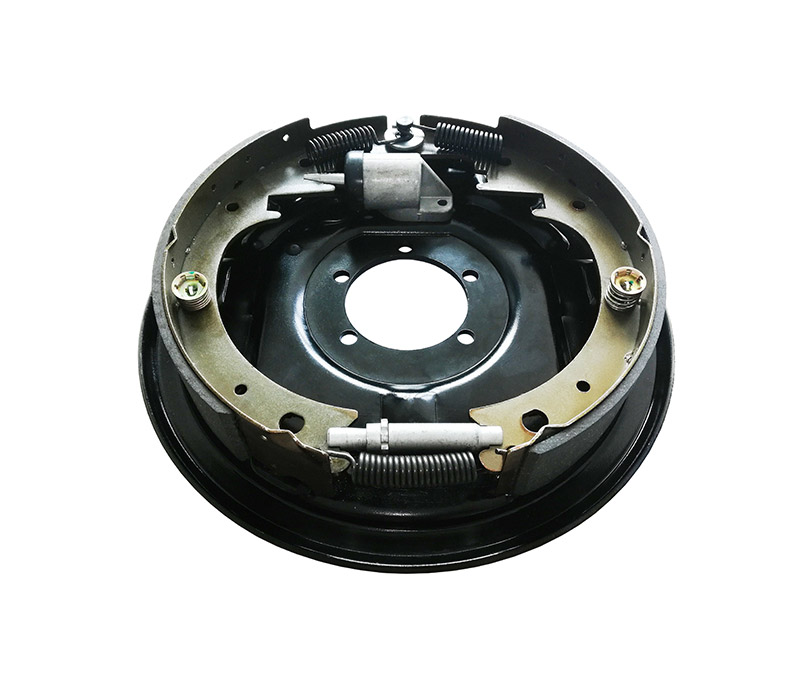

12" x 2" Trailer Hydraulic Uni-Servo Brake Assembly

Hydraulic Brake Assembly

12 x 2 inch Drum

Trailer Brake Kits

5200 lbs, 6000 lbs, 7000 lbs

12” Hydraulic Brake


Trailer Axle Brakes

Trailer Surge Brakes


12” x 2” hydraulic uni-servo brakes are replacement for one 5.2k – 7k lbs axle with 5 bolt pattern. The brakes are heavy duty application for 7000 lbs trailer axles. Every 12 inch hydraulic trailer brake assemblies have two pieces of non- asbestos semi metal brake shoes, bonded and riveted are available. The matched drums are 6 bolt or 8 bolt 12” brake drums. Technicians always recommend the customers to use hydraulic brake kit for tandem axles & torsion axles of boat trailers.


l  12" hydraulic uni-servo brakes use with a surge-type trailer brake actuator (sold separately).

l  Manual adjustment – using fine tooth brake adjustment.

l  E-coated backing plates provide corrosion protection.

l  Pre-assembled and easy installation.

l  This trailer backing plate exchange with most standard hydraulic brakes, such as Dexter, Titan, Demco, Axletek, etc.


Ø  Dimension: 12 inch x 2 inch

Ø  Axle Capability: 5200 lbs Axle / 6000 lbs Axle/ 7000 lbs Axle (14.5”, 15", 16”, 16.5” Wheel)

Ø  Mounting Flange Bolt Pattern: 5 bolt

Ø  Brake Fit: Left Hand / Driver Side / LH, Right Hand / Passenger Side / RH

Product Composition

²  12” x 2" Bonded Uni-Servo Brake Shoe Kit x 1

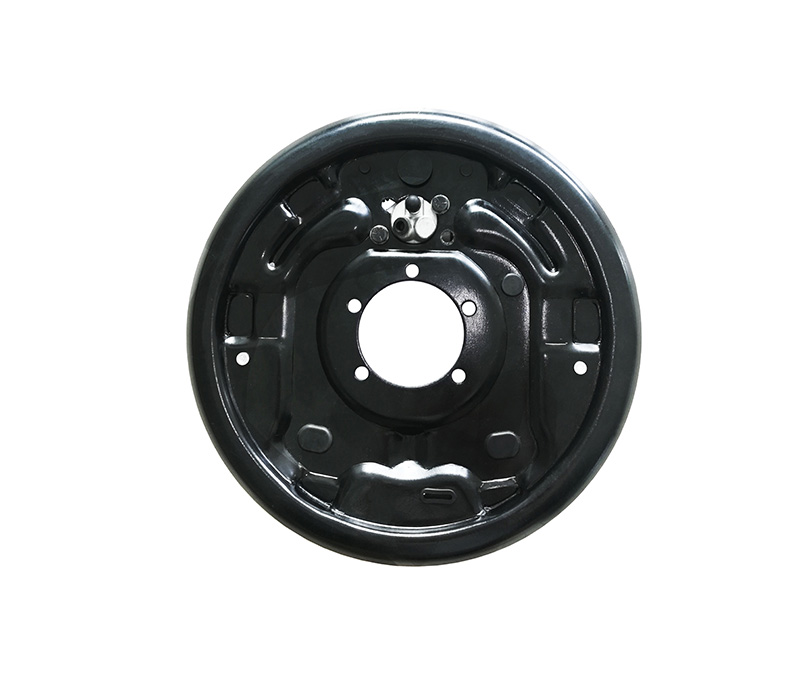

²  E-Coated Back Plate x 1

²  Single-Servo Wheel Cylinder x 1

²  Springs x 2
