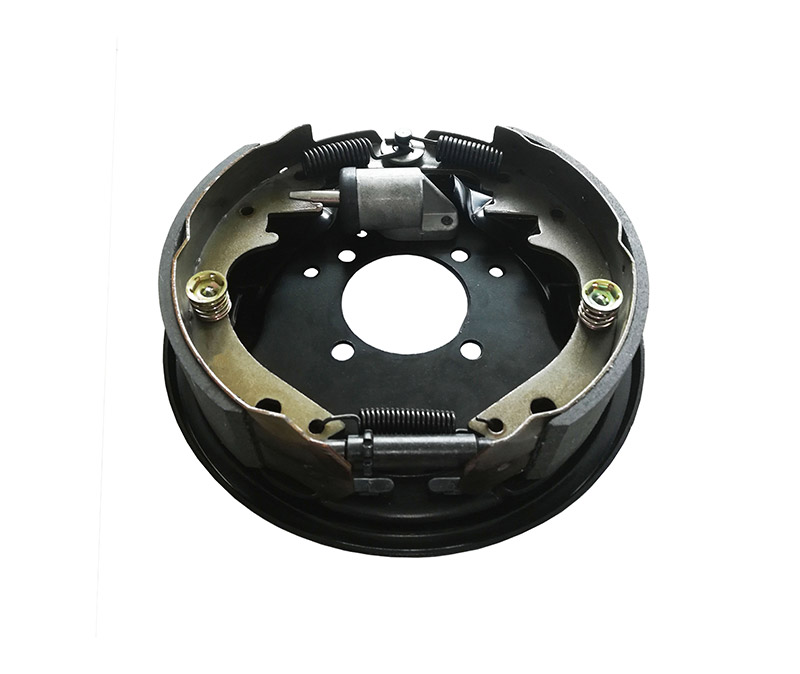

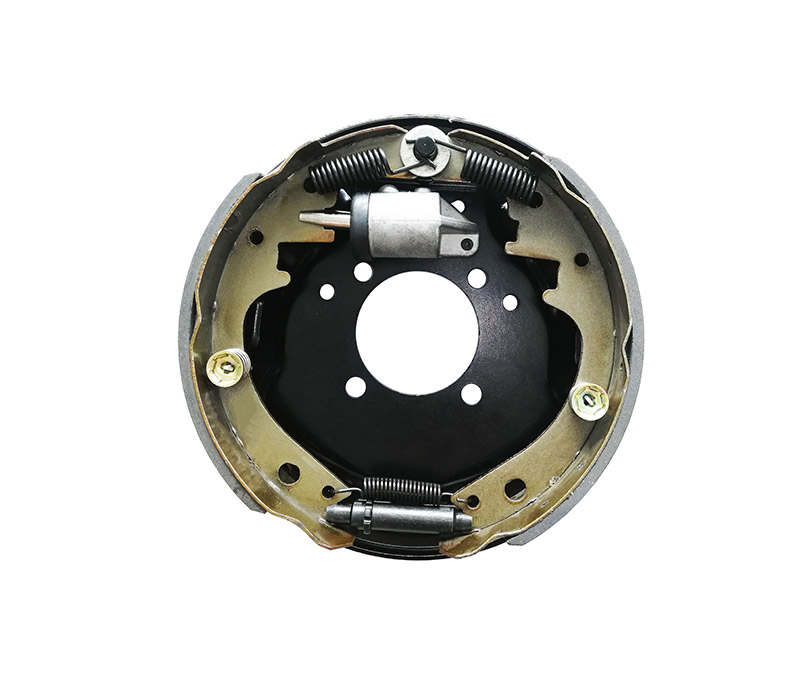

10" x 2 1/4" Trailer Hydraulic Uni-Servo Brake Assembly

Hydraulic Drum Brakes

10 x 2.25 inch Drum

Manual Adjustment

3500 lbs

Hydraulic Trailer Brake


Marine Trailer Brakes

Trailer Brake Assembly


10 inch hydraulic drum brakes are rated 3.5k lbs per pair.  10” x 2.25” trailer hydraulic backing plate is fully assembled for a quick and easy installation. The hydraulic drum brakes for trailers are ready to bolt to the 4-hole mounting flange. These hydraulic trailer brake kit interchanges with most major brands of axles, without modifying the axle or mounting flange, such as Demco, Atwood, Axletek, Lippert and Dexter. Please note that the hydraulic brake assembly will deliver 20 percent braking when traveling in reverse.


l  Hydraulic drum brake assemblies are designed for use with a surge-type trailer brake actuator (sold separately).

l  Fully Assembled; Quick and easy installation.

l  E-coated backing plates resist wear and corrosion.

l  Periodic manual adjustment required.

l  These 10" hydraulic uni-servo trailer brakes exchange with most axle brands including Dexter, AL-KO, etrailer, Demco and many others.


Ø  Dimension: 10 inch x 2 1/4 inch

Ø  Axle Capability: 3500 lbs Axle (13", 14”, 15" Wheel)

Ø  Mounting Flange Bolt Pattern: 4 bolt

Ø  Brake Fit: Left Hand / Driver Side / LH, Right Hand / Passenger Side / RH

Product Composition

²  10” x 2 1/4" Bonded Uni-Servo Brake Shoe Kit x 1

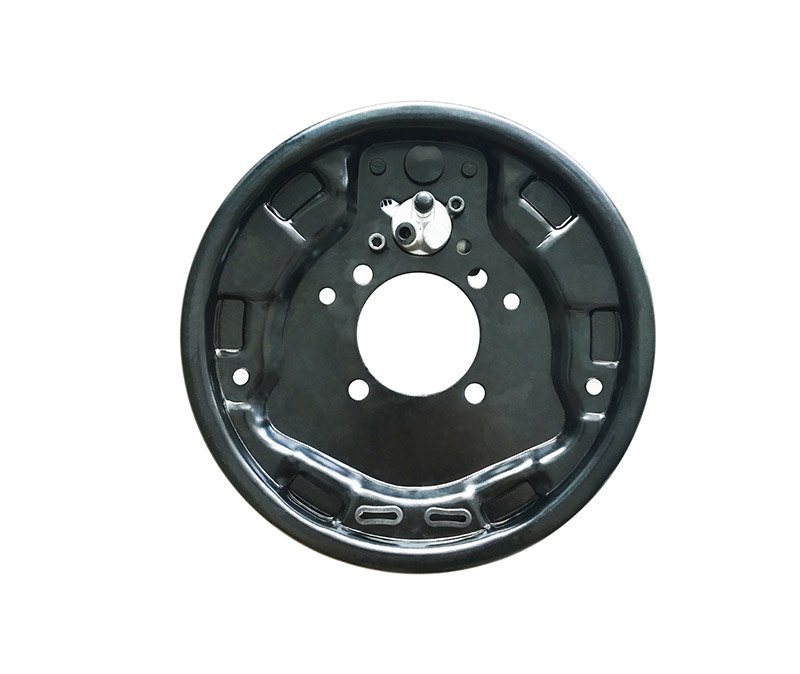

²  E-Coated Back Plate x 1

²  Single-Servo Wheel Cylinder x 1

²  Springs x 2

²  Adjuster X 1
