10" x 2 1/4" Trailer Electric Brake Assembly with Parking


With   Partking

Manual   Adjust

Trailer   Brake Axle

trailer   brake assembly

10   x 2.25 inch drum

electric   brake trailer axle

trailer   brake parts

4   lug trailer axle

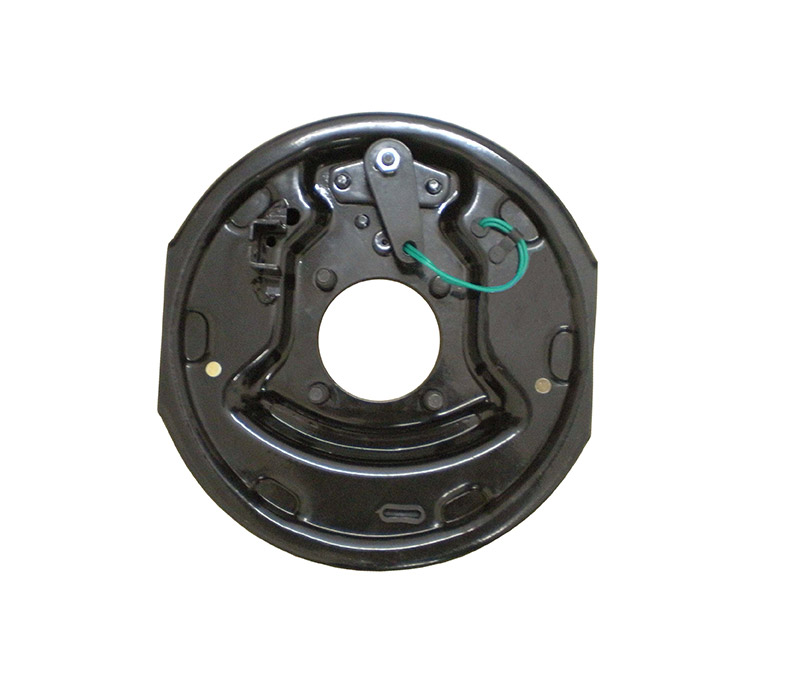

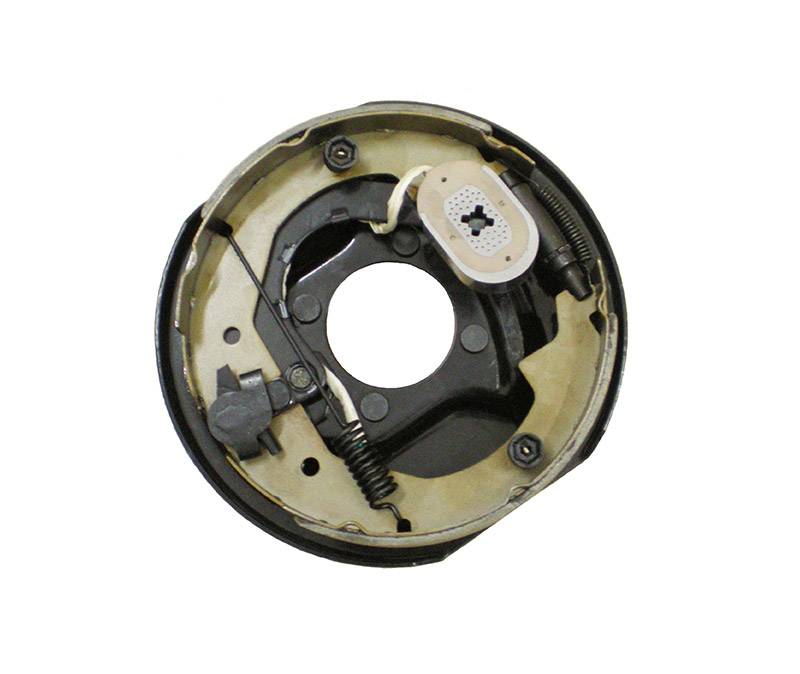

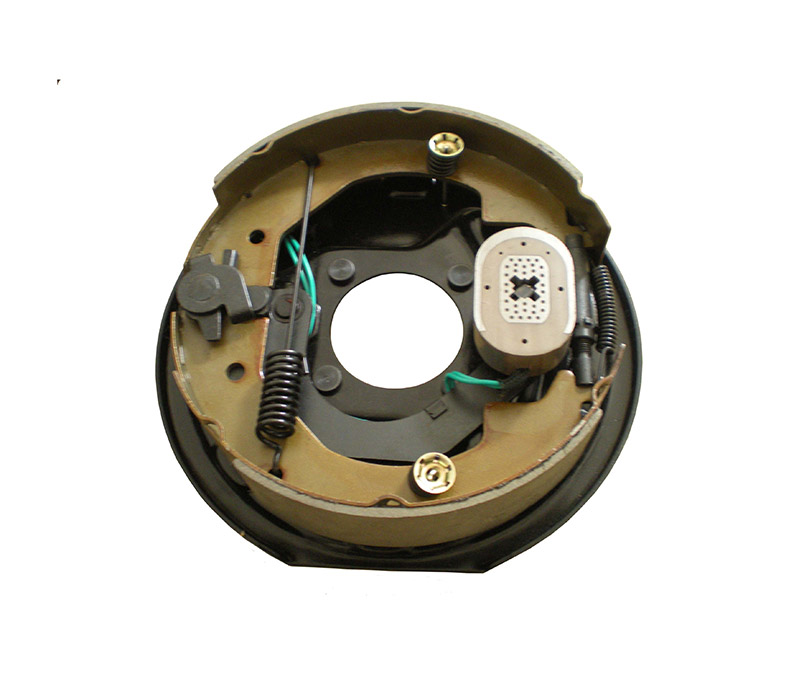

 10 inch electric trailer brake assemblies has the completely same function as RVH, but with a very different design.  10’’ x 2¼’’ electric brake with parking feature is very hot in America.  It is designed to use 10" brake drums. They offer more user control than common electric brakes. With the brake cable, the brake assembly with parking brake can work in a much safer situation.


l  electric trailer brakes with parking brake are much more reliable and easy to control.

l  No need actuator or hydraulic lines.

l  10" trailer backing plate is E-coated to resist corrosion.

l  Periodic manual adjustment required.

l  Brake mounting bolts are included.

l  Manual parking brake lever included

l  Exchange with most trailer axle 3500 pounds, including Dexter.


Ø  Dimension: 10 inch x 2¼ inch

Ø  Axle Capability: 3500 lbs Axle

Ø  Mounting Flange Bolt Pattern: 4 bolts

Ø  Brake Fit: Left Hand / Driver Side / LH, Right Hand / Passenger Side / RH

Product Composition

Ø  10” x 2 1/4" Brake Shoe Set x 1

Ø  E-coat Backing Plate x 1

Ø  Green Wire Magnet x 1

Ø  Magnet Lever x 1

Ø  Springs x 2

Ø  Adjuster x 1
