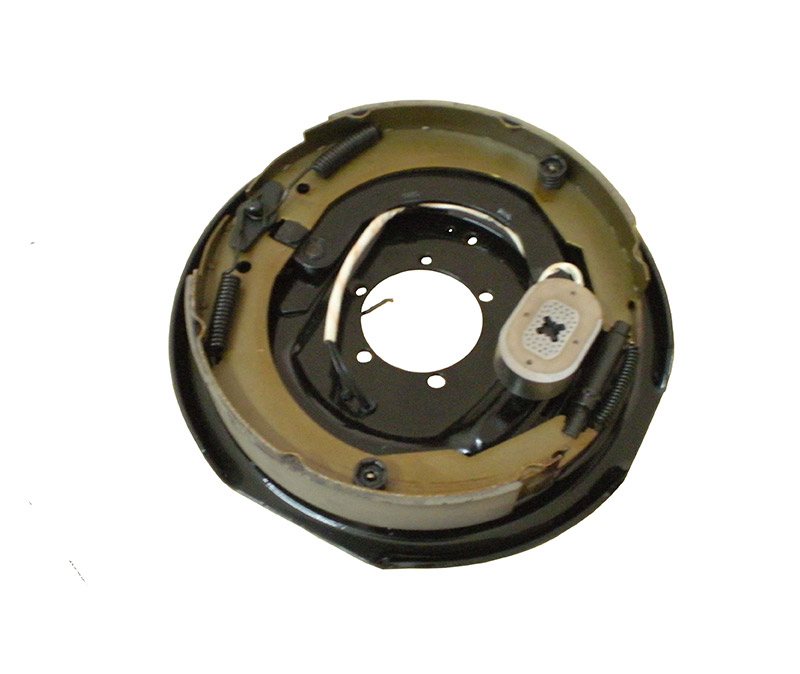

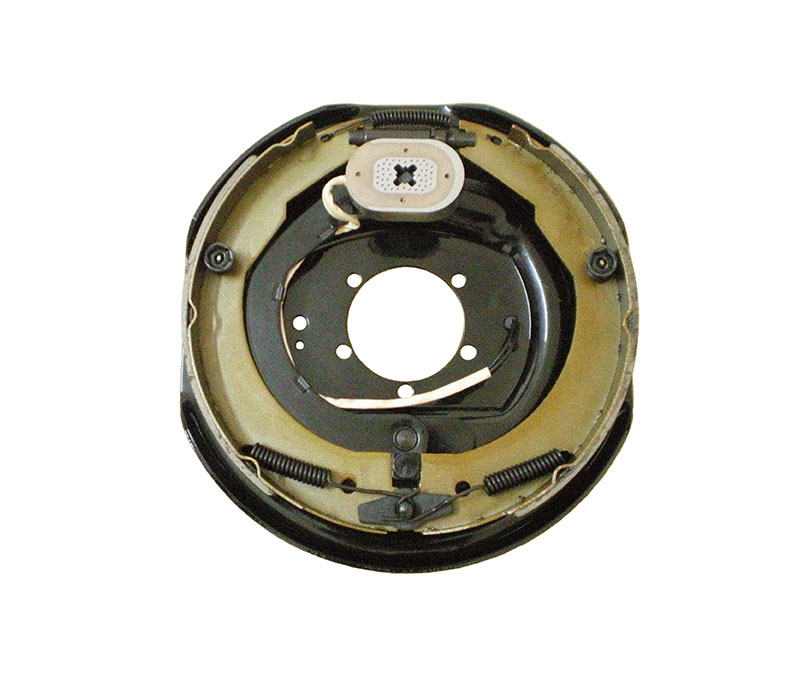

12" x 2" Trailer Electric Brake Assembly


Trailer Brakes

Manual Adjustment

Brake assembly

12’’   x 2’’ drum

12" electric brake

12 inch trailer brake

6000 lbs trailer axle

12" trailer drum brakes


 12" drum brake assemblies are usually work with the same size brake drum for 6k lbs trailer axles. This basic trailer brake assembly are produced in huge quantity and sold million pcs per year to America and Canada. The original design for 12’’ electric brake assembly are fit for those trailer axles with the load of 6000 pounds, but with the reinforced black wire magnet, the brake assembly could work on 7000 lbs trailer axles.


l  Electric drum brakes are easy to install and control.

l  Needs only an electric brake controller to work.

l  No need actuator or hydraulic lines.

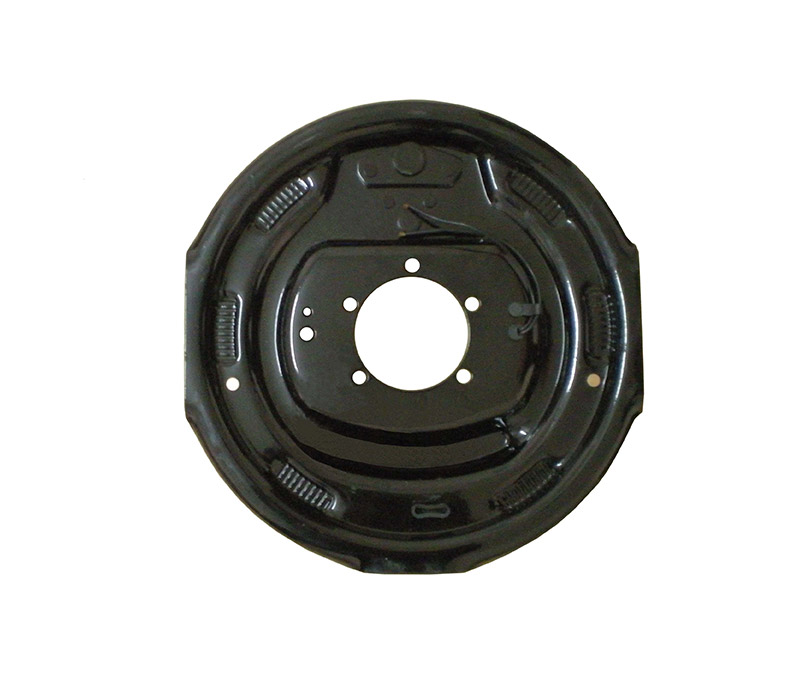

l  12" electric backing plate is electrophoretic-coated to resist corrosion.

l  Periodic manual adjustment required.

l  Electric brake assembly can exchange with most 5 lug trailer axles 6000 lbs, including Dexter, Hayes and many others.


Ø  Dimension: 12 inch x 2inch

Ø  Axle Capability: 6000 lbs Axle

Ø  Mounting Flange Bolt Pattern: 5 bolts

Ø  Brake Fit: Left Hand / Driver Side / LH, Right Hand / Passenger Side / RH

Product Composition

Ø  12” x 2" Brake Shoe Set x 1

Ø  E-coat Backing Plate x 1

Ø  White/Black Wire Magnet x 1

Ø  Magnet Lever x 1

Ø  Springs x 2

Ø  Adjuster x 1
