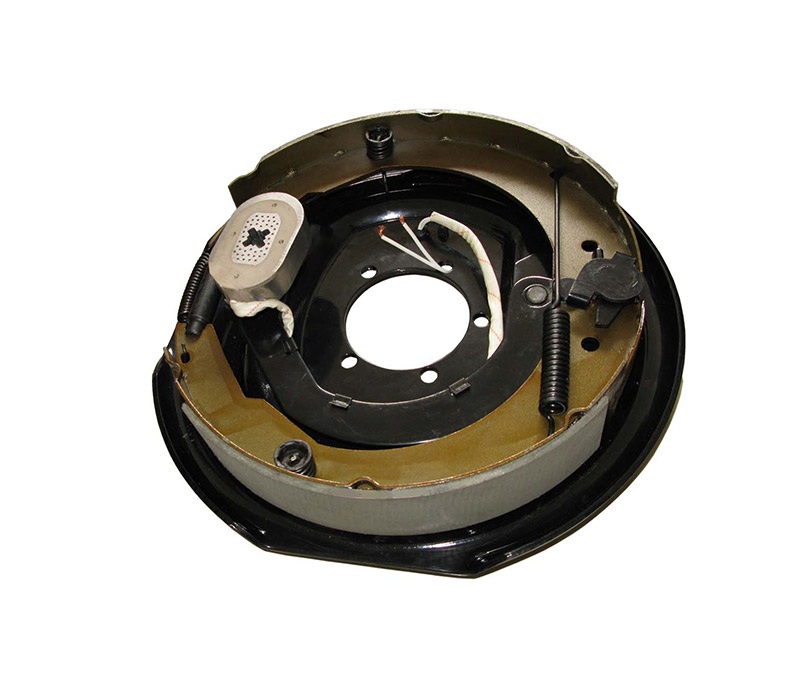

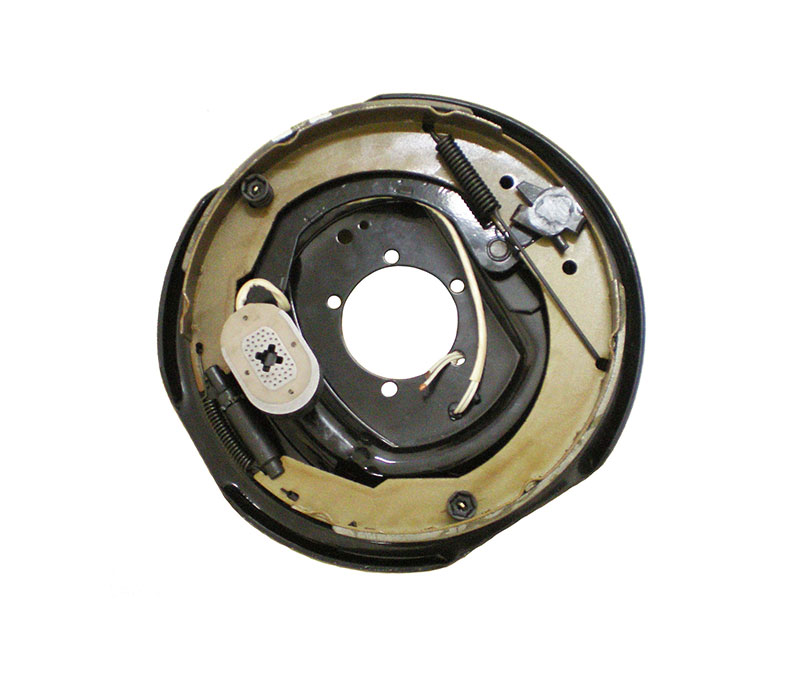

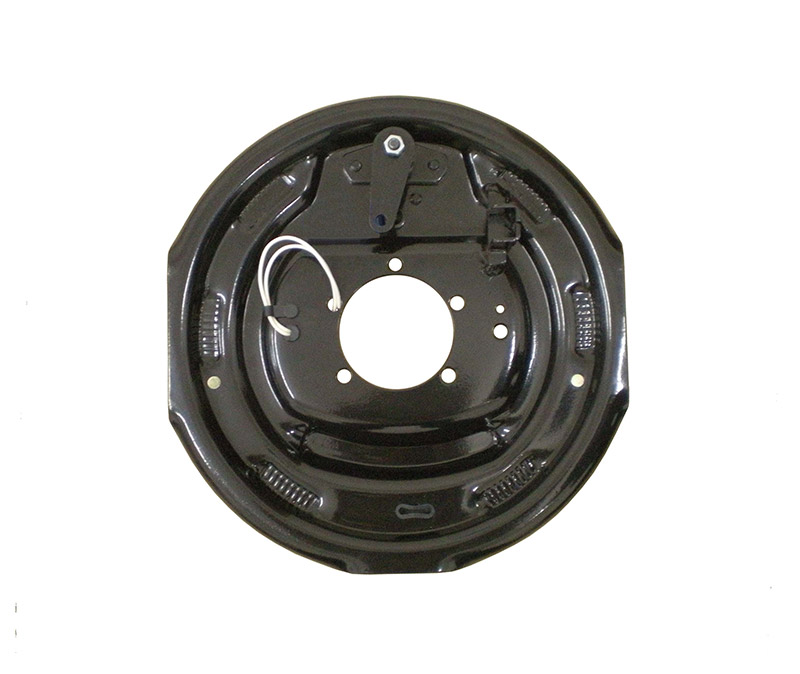

12" x 2" Trailer Electric Brake Assembly with Parking


Trailer Brakes

Manual Adjustment

With handbrake

12   drum brake

12 inch electric brake

trailer axle with brakes

6000 lbs trailer axle

trailer brake kits


 ATM (Aggregate Trailer Mass)

GTM (Gross Trailer Mass)

In Australia, all trailers with ATM or GTM over 2000kg must have a Breakaway Brake setup that will immediately apply the trailer brakes in the event of the trailer becoming disconnected from the towing vehicle. Trailer axle with electric brakes always equipped with handbrake to meet the Australia Standard.


l  Electric brake assemblies with hand brake make you a better trip.

l  Needs only an electric brake controller to work.

l  12" backing plate is electrophoretic-coated to resist corrosion.

l  Periodic manual adjustment required.

l  12" x 2" Trailer Electric Brake Assembly with Parking can work with most electric trailer brake system 5200 lbs trailer axle, 6000 lbs trailer axle and 7000 lbs axle, including Dexter, Hayes and many others.


Ø  Dimension: 12 inch x 2inch

Ø  Axle Capability: 5200 lbs/6000 lbs/7000 lbs Axle

Ø  Mounting Flange Bolt Pattern: 5 bolts

Ø  Brake Fit: Left Hand / Driver Side / LH, Right Hand / Passenger Side / RH

Product Composition

Ø  12” x 2" Brake Shoe Set x 1

Ø  E-coat Backing Plate x 1

Ø  White/Black Wire Magnet x 1

Ø  Magnet Lever x 1

Ø  Handbrake x 1

Ø  Springs x 2

Ø  Adjuster x 1
