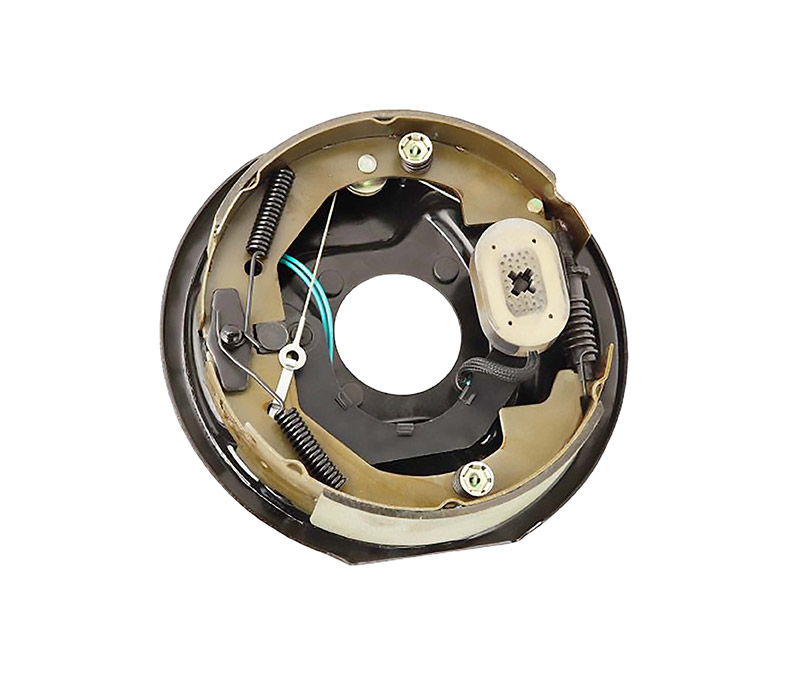

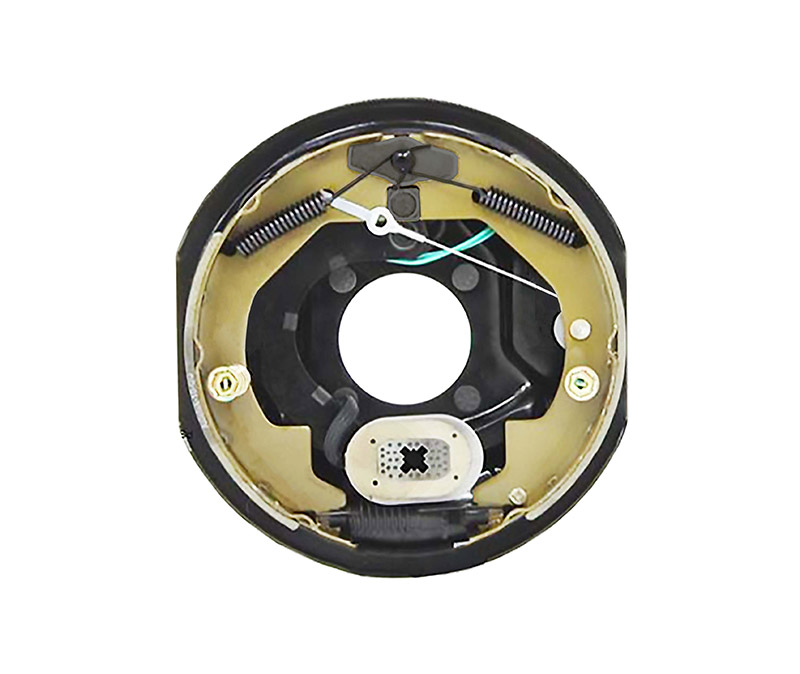

10" x 2 1/4" Trailer Self-Adjusting Electric Brake Assembly


Trailer Brake parts


Trailer Axle parts


10" electric brakes

trailer electric brake system

3500 lb trailer axle

Trailer Axle Brakes


Self adjusting electric brake assembly is a brilliant design for trailer electric brake system. Al-KO call it Nev-R-Adjust which is mainly for the trailer axles 2000lbs to 4000lbs later than 2009. It will adjust itself when the trailer axle brakes are worn thinner. The distance between brake lining and drum will always keep a very close so that the strength you step the brake pedal will never need change till the brake shoes are worn out.


l  10 inch electric brakes are easy to install and control.

l  Needs only an electric brake controller to work.

l  No need actuator or hydraulic lines.

l  No need adjusts manually.

l  Trailer brake parts are always in the perfect distance to the drums.

l  Brake mounting bolts are included.

l  10’’ x 2.25 self-adjust Electric brake assembly can exchange with most 4 lug trailer axles not over 4000 lbs, including Dexter, AL-KO and many others.


Ø  Dimension: 10 inch x 2 1/4 inch

Ø  Axle Capability: 3500 lbs Axle

Ø  Mounting Flange Bolt Pattern: 4 bolts

Ø  Brake Fit: Left Hand / Driver Side / LH, Right Hand / Passenger Side / RH

Product Composition

Ø  10” x 2 1/4" Brake Shoe Set x 1

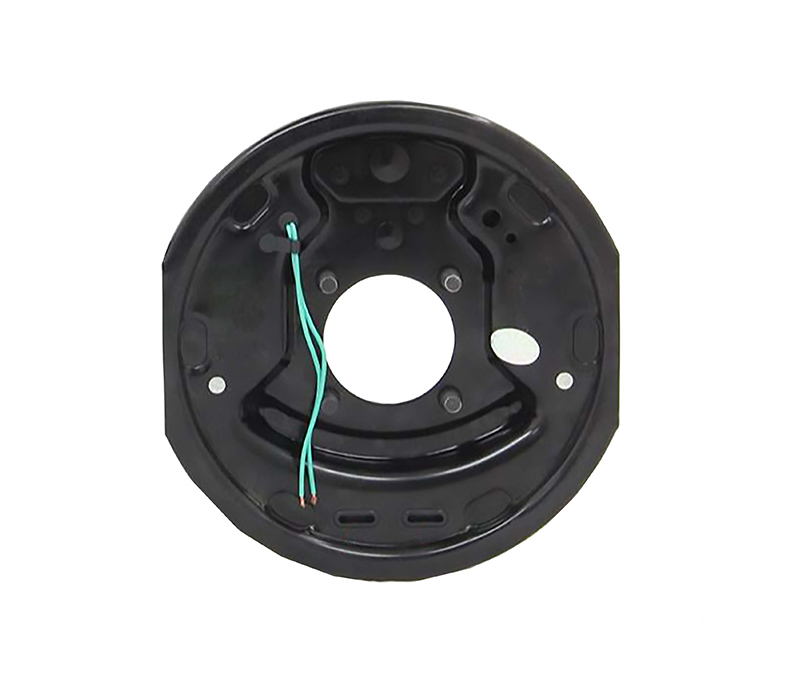

Ø  E-coat Backing Plate x 1

Ø  Green Wire Magnet x 1

Ø  Magnet Lever x 1

Ø  Self-adjust cable

Ø  Springs x 2

Ø  Adjuster x 1
