10" x 2 1/4" Trailer Off Road Electric Brake Assembly

Trailer Backing Plate

Electric Drum Brake

With Parking Brake

Trailer Brake Assembly

Off Road Electric Brakes

With Handbrake

1400 KG – 1600 KG Axle

10” Brake Drum

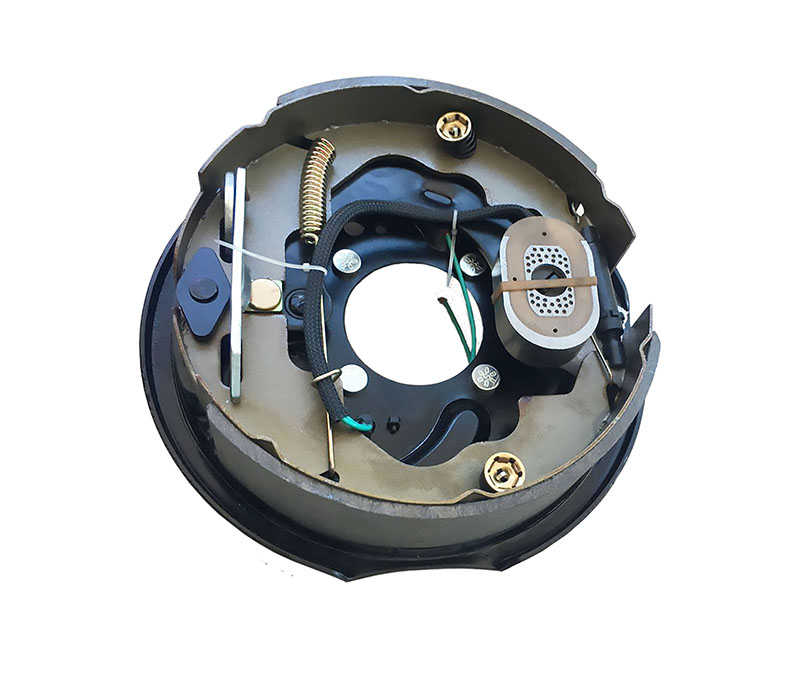

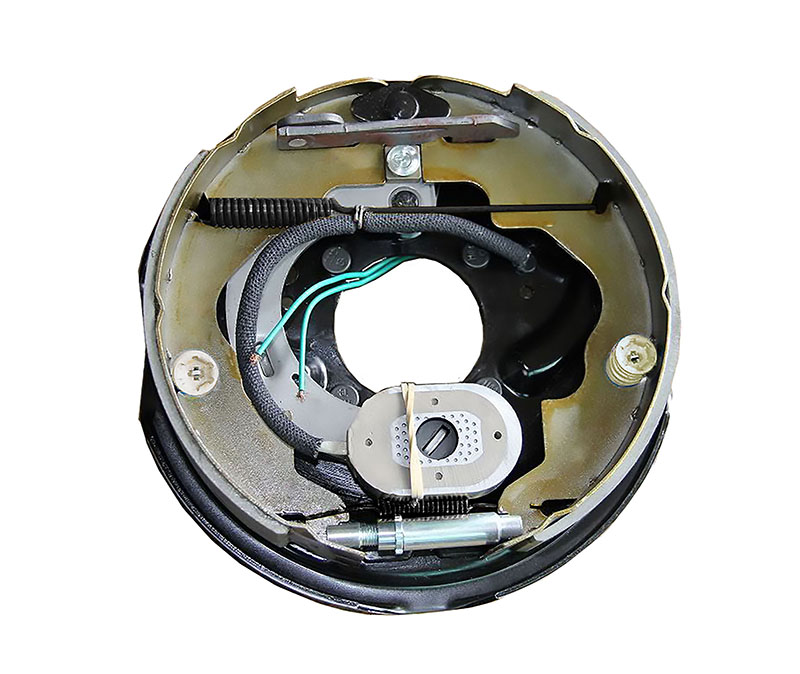

10" x 2 1/4" offroad trailer electric brake assembly with handbrake is specifically designed for extreme rugged conditions in Australia. The 10” electric backing plate mounts on standard 4 bolt flange, and it is used to work with slimline and parallel 10” brake drums. The obvious difference between off road electric brakes and electric brakes with handbrake is the magnet, off road magnet has a high-tech plastic core and that will reduce vibration, wear and high temperature damage, in order to prolong the life of electric brakes.


l  10” x 2 1/4” Trailer Drum Brakes are recommend replacing AL-KO off road electric brakes to the caravans, campers or trailers.

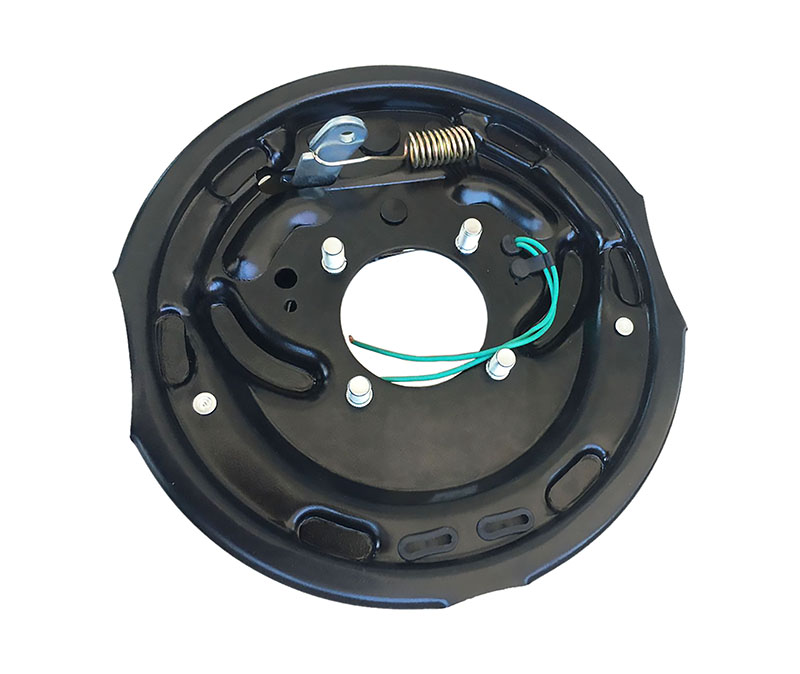

l  E-coated backing plates resist wear and corrosion.

l  Periodic manual adjustment required.

l  Fully assembled and easily installation, mostly used for Australian offroad trailers.

l  Electric backing plates are an extremely efficient and reliable braking system that require minimum maintenance.

l  Needs only an electric brake controller to work.

l  High grade brake linings provide smooth efficient braking.


Ø  Dimension: 10 inch x 2.25 inch

Ø  Axle Capability: 1400 kg (13”-14” wheel) to 1600 kg (15”-16” wheel) Axle

Ø  Mounting Flange Bolt Pattern: 4 bolts

Ø  Brake Fit: Left Hand / Driver Side / LH, Right Hand / Passenger Side / RH

Product Composition

²  10” x 2 1/4” Electric Brake Shoe Set x 1

²  E-coat Backing Plate x 1

²  Magnet Lever x 1

²  Green Wire Offroad Magnet x 1

²  Brake Adjuster x 1

²  Long Spring x 1

²  Short Spring x 1
