Mobile Home Axle (MHA)
For 4500 LB - 6000 LB Axle
12” Drum Brake
One Time Use

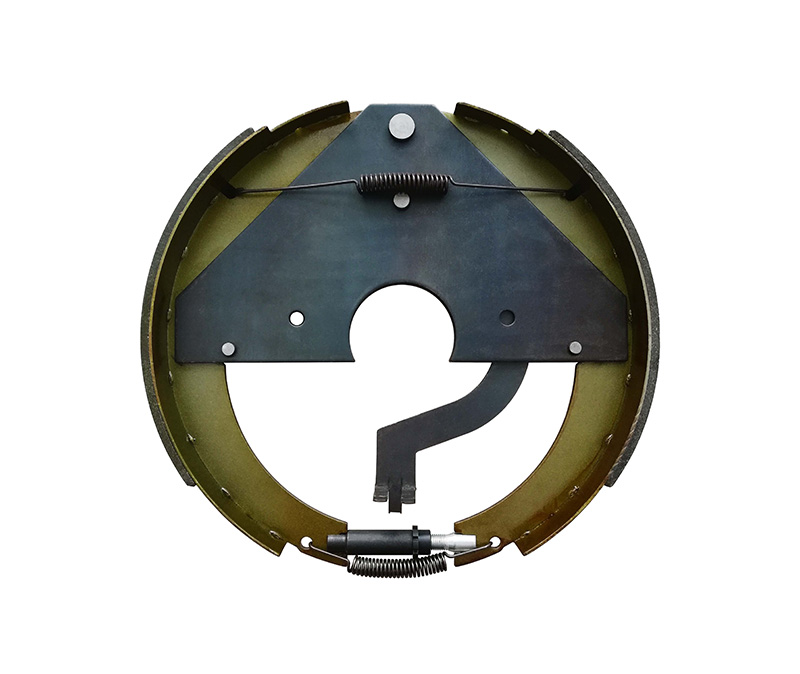

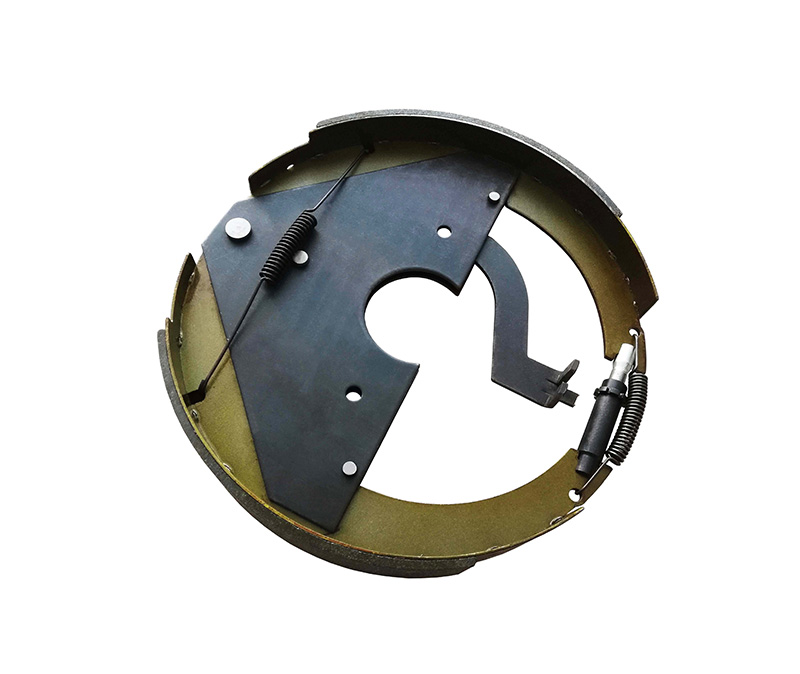

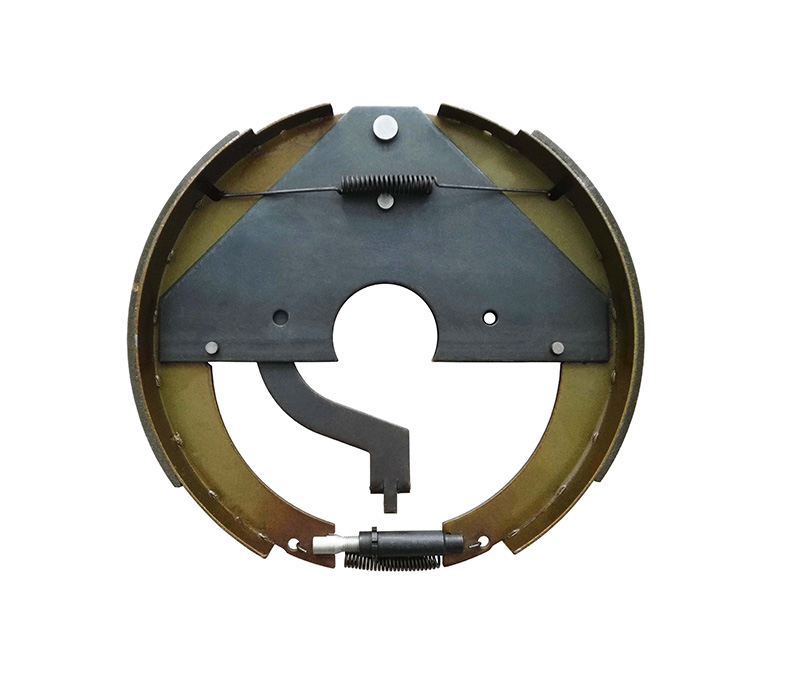

Electric Brake Assembly
l The 12” Electric Brake Assemblies are specialized for Mobile Home Axles.
l Dexter Axle Co., develop mobile home axles in order to reduce the cost of suspension system.
l This system was not approved by DOT, but approved by HUD (Housing and Urban Development).
l Assembly comes complete with magnet, arm, and weld on backing plate.
l Mobile home electric brake assembly is welded onto the beam and not intended to be field replaced.
Ø Dimension: 12 inch x 2 inch
Ø Axle Capability: 4500 lbs to 6000 lbs Axle
Ø Installation Method: Weld On
Ø Brake Fit: Left Hand / Driver Side / LH, Right Hand / Passenger Side / RH
² 12” x 2" Electric Brake Shoe Set x 1
² Weld On Back Plate x 1
² Round Magnet with Spring x 1
² Magnet Arm x 1
² Brake Adjuster x 1
² Long Spring x 2
² Short spring x 1
