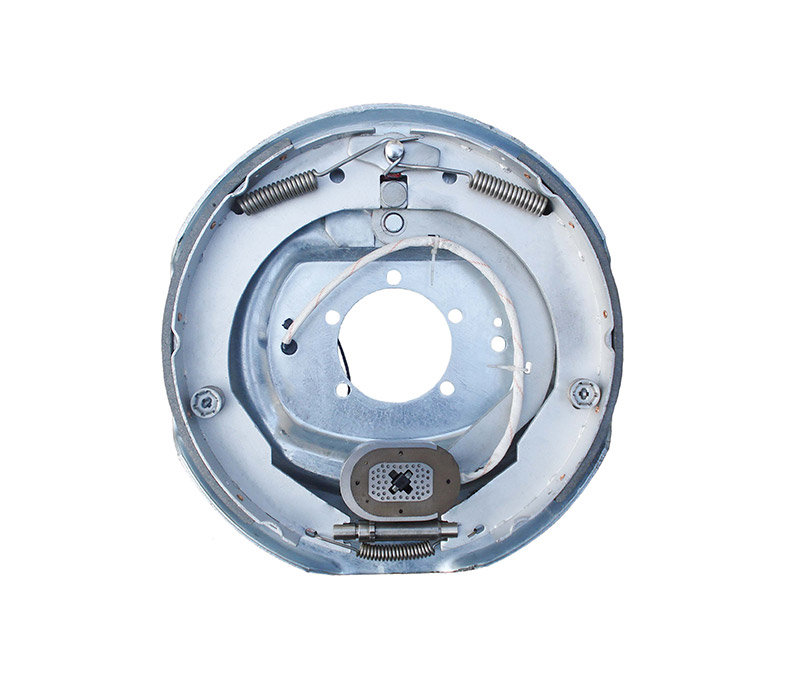

12" x 2" Trailer Galvanized Electric Brake Assembly


Rivited brake shoes

Manual Adjustment

12" electric brake

12"   trailer drum brakes

Hot dipped brake assembly

electric drum brakes for trailers

6000 lbs trailer axle

trailer brake kits


Galvanized trailer axle kits are play well on corrosion resistant. The brake shoes are riveted to ensure its reliability. The rivets are bronze. The brake lining is SAE tested and will not broken till it worn. Long distance continuous braking may guide the brakes into extremely hot, but with riveted bake shoe you will never worry about the lining will run off the shoe.


l  All parts of 12 inch electric drum brakes are designed to resist corrosion.

l  electric trailer brake assembly is easy to install and control.

l  Needs only an electric brake controller to work.

l  No need actuator or hydraulic lines.

l  Trailer electric backing plates are galvanized.

l  Periodic manual adjustment required.

l  Brake mounting bolts are included.

l  Galvanized 12x2 trailer brake assembly can exchange with most trailer axle 5200 lbs, 6000 lbs and 7200 lbs including Dexter, AL-KO, Hayes, Lippert and many others.


Ø  Dimension: 12 inch x 2 inch

Ø  Axle Capability: 5200 lbs/6000 lbs/7000 lbs Axle

Ø  Mounting Flange Bolt Pattern: 5 bolts

Ø  Brake Fit: Left Hand / Driver Side / LH, Right Hand / Passenger Side / RH

Product Composition

Ø  12” x 2 " Brake Shoe Set x 1

Ø  Hot dipped Backing Plate x 1

Ø  White/Black Wire Magnet x 1

Ø  Magnet Lever x 1

Ø  Stainless Steel Springs x 2

Ø  Stainless Steel Adjuster x 1
