√ | Trailer Brakes | √ | 9,000 lb. – 12,000 lb. |
√ | Electric Backing Plate | √ | Trailer Brake Assembly |
√ | Self-Adjusting | √ | Electric Drum Brake |
The 12 1/4" x 3 1/2" electric brakes can fit AL-KO/Hays axles, but not for Dexter axles.
Features
l 12.25 x 3.5” Electric Brakes fit 5 mounting flange for 9k lb. to 12k lb. trailer axles.
l Self-adjusting electric brake assembly keeps the brake adjusted automatically.
l Fully assembled, compatible with most trailer axle manufacturers.
l Fits 15" or larger wheels.
Specifications
Ø Dimension: 12.25 inch x 3.5 inch
Ø Axle Capability: 9000 lbs to 12000 lbs Axle
Ø Mounting Flange Bolt Pattern: 5 bolts (Mount plate has 6 holes, but normally only 5 are used)
Ø Brake Fit: Left Hand / Driver Side / LH, Right Hand / Passenger Side / RH

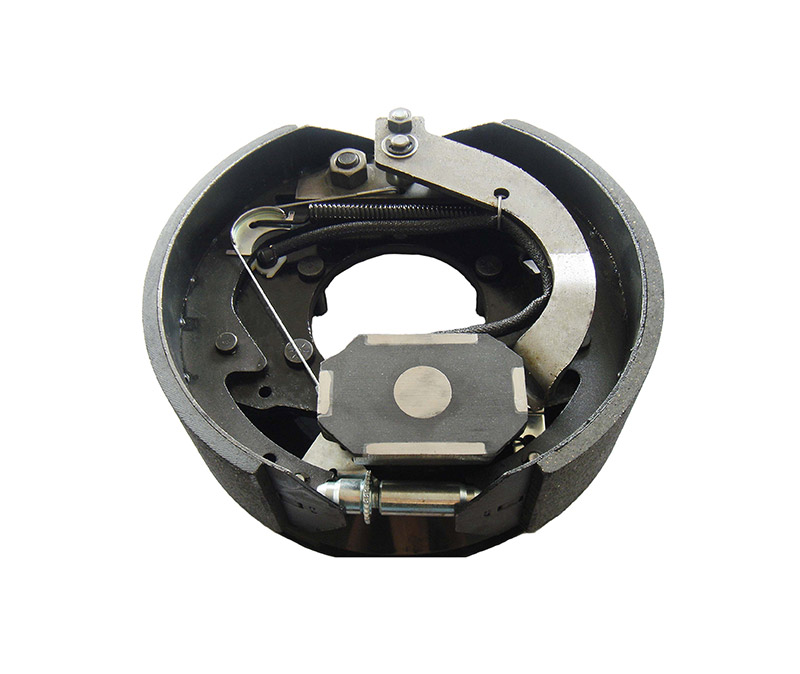

Product Composition
² 12 1/4” x 3 1/2" Electric Brake Shoe Set x 1
² 5 Bolt Mounting Cast Backing Plate x 1
² Magnet Lever x 1
² Magnet x 1
² Brake Adjuster x 1
² Long Spring x 1
² Short Spring x 2
