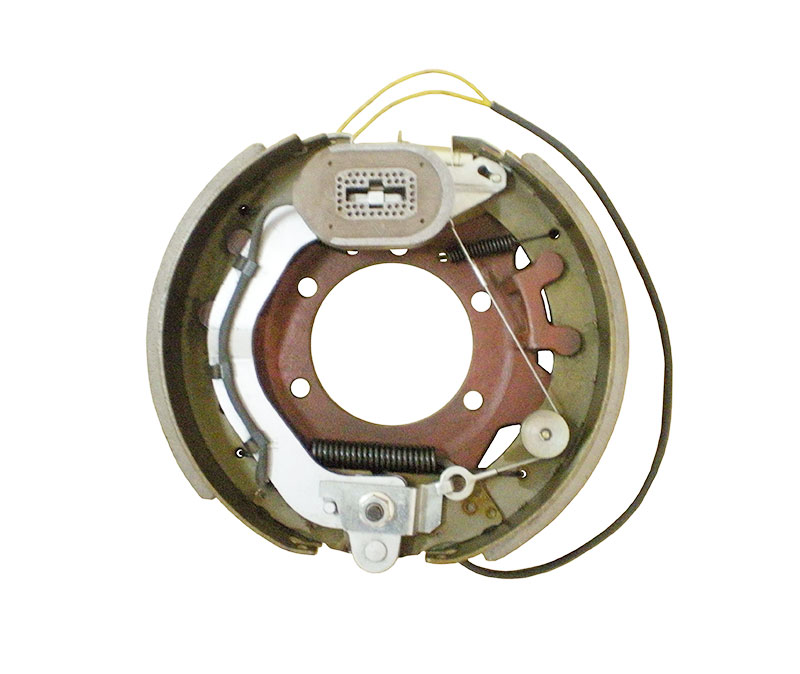

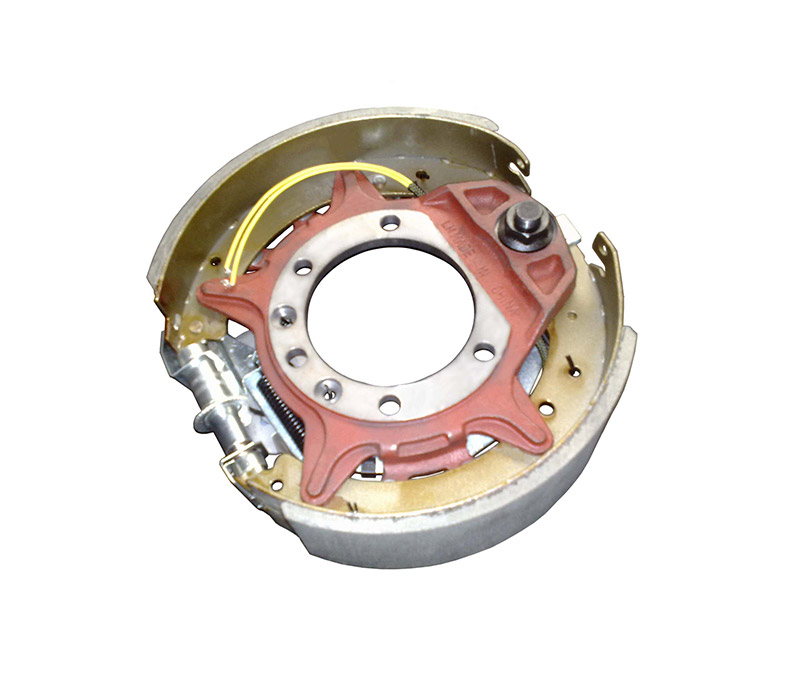

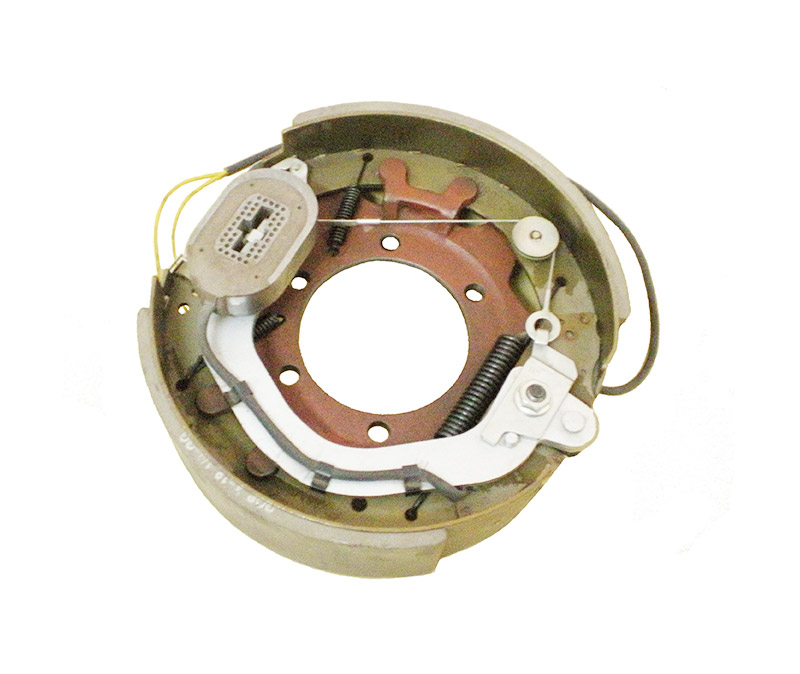

√ | Forward Self Adjusting (FSA) | √ | 9,000 lb. – 10,000 lb. |
√ | Trailer Electric Brakes | √ | Electric Backing Plate |
√ | 12.25” x 3.375” | √ | Trailer Brake Assembly |
Features
l This electric brake assemblies fit standard 5 bolt mounting flange for 9k lb. to 10k lb. trailer axles.
l Forward Self Adjusting (FSA) electric brake assembly keeps the brakes adjusted automatically.
l The brake shoes/linings of 12 1/4” x 3 3/8” electric brakes are same.
l Completely Assembled; Quick and easy installation.
l Requires dust shields (sold separately).
Specifications
Ø Dimension: 12.25 inch x 3.375 inch
Ø Axle Capability: 9000 lbs to 10000 lbs Axle
Ø Mounting Flange Bolt Pattern: 5 bolts
Ø Brake Fit: Left Hand / Driver Side / LH, Right Hand / Passenger Side / RH
Product Composition
² 12 1/4” x 3 3/8" Electric Brake Shoe Set x 1
² 5 Bolt Mounting Cast Backing Plate x 1
² Magnet Lever x 1
² Yellow Wire Magnet x 1
² Brake Adjuster x 1
² Long Spring x 1
² Short Spring x 2
