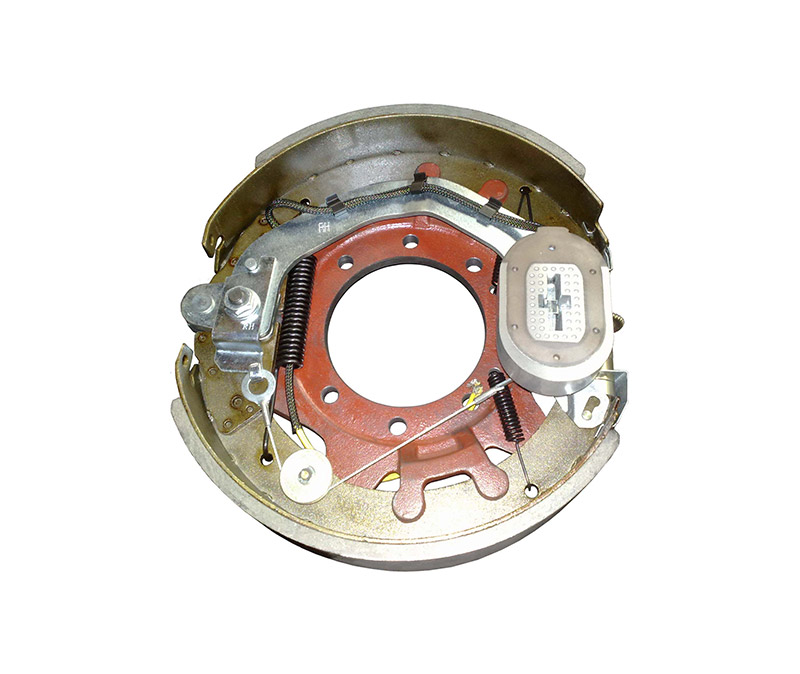

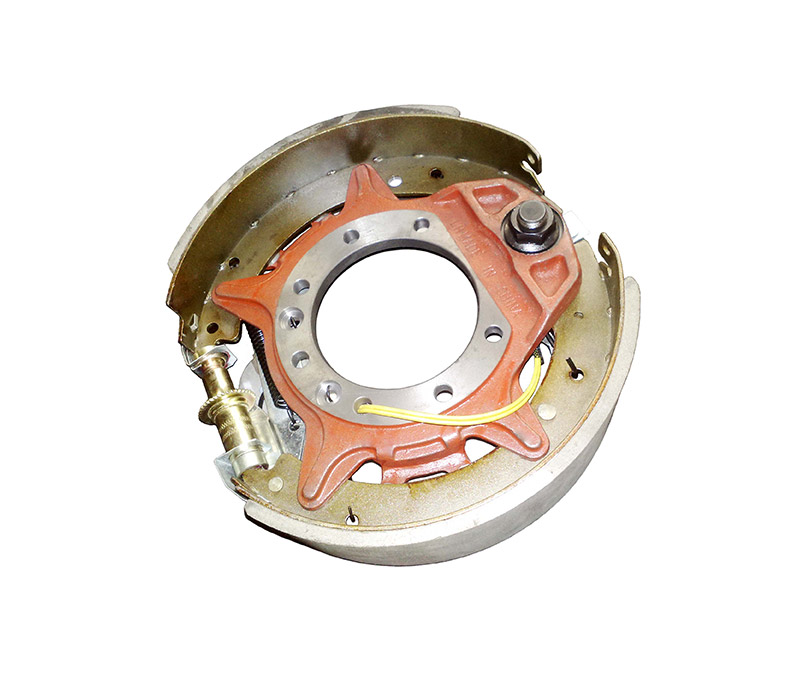

12-1/4" x 3-3/8" Trailer Electric Brake Assembly 7-Hole

Forward Self Adjusting (FSA)

9,000 lb. – 10,000 lb.

Trailer Backing Plate

Trailer Axles

Electric Brakes

Electric Brake Assembly

Features

l  This electric brake assemblies fit standard 7 bolt mounting flange for 9k lb. to 10k lb. trailer axles.

l  Forward Self Adjusting (FSA) electric brake assembly keeps the brakes adjusted automatically.

l  Compatible with most trailer axle manufacturers.

l  E-coated backing plates resist wear and corrosion

l  Fits 15" or larger wheels.

Specifications

Ø  Dimension: 12.25 inch x 3.375 inch

Ø  Axle Capability: 9000 lbs to 10000 lbs Axle

Ø  Mounting Flange Bolt Pattern: 7 bolts

Ø  Brake Fit: Left Hand / Driver Side / LH, Right Hand / Passenger Side / RH

Product Composition

²  12 1/4” x 3 3/8" Electric Brake Shoe Set x 1

²  7 Bolt Mounting Cast Backing Plate x 1

²  Magnet Lever x 1

²  Yellow Wire Magnet x 1

²  Brake Adjuster x 1

²  Long Spring x 1

²  Short Spring x 2
